What Is a Cabin Assembly — and What Does It Include?

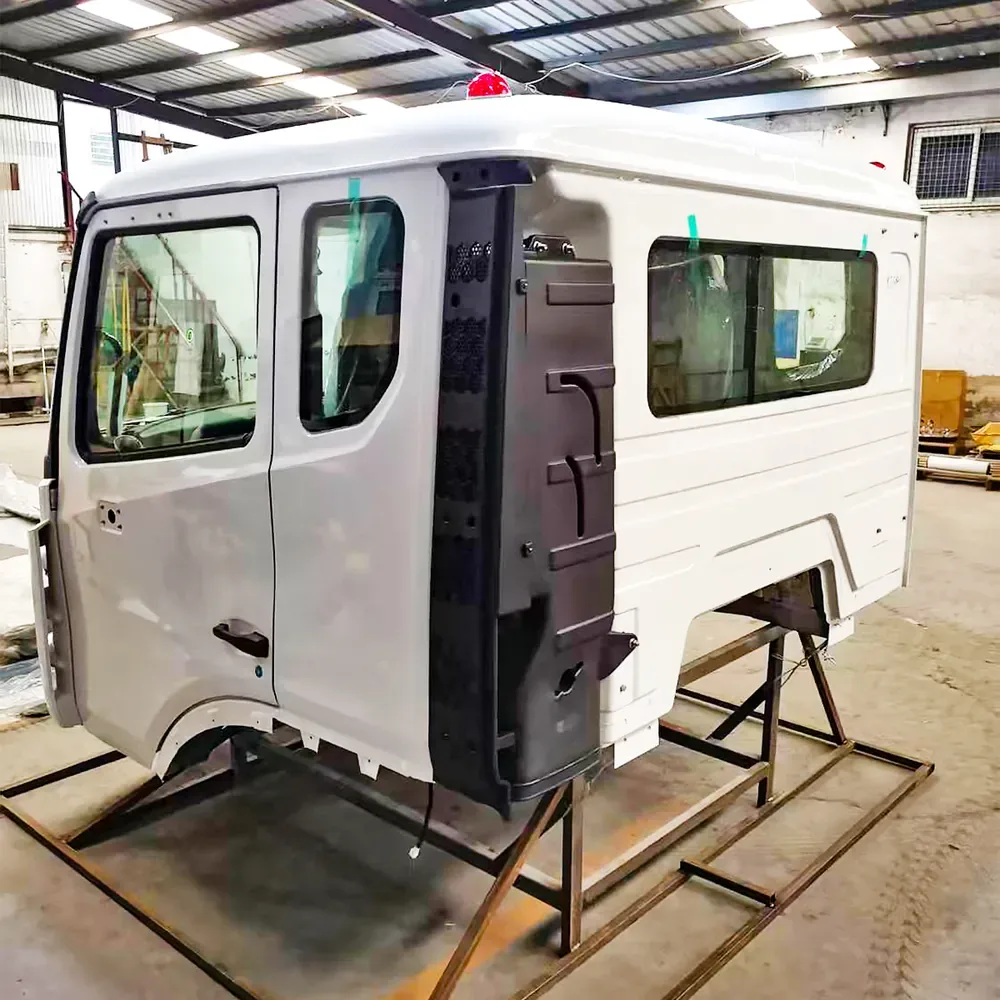

A cabin assembly is not just the outer metal shell. It is the complete driver compartment unit, typically comprising:
Body-in-white: The welded steel cabin structure — roof panel, A/B/C pillars, floor pan, firewall, rear wall, and door frames. This is the structural core that determines crashworthiness and rigidity.
Doors: Both left and right door assemblies, usually including hinges, latches, window regulators, and glass.
Interior trim: Dashboard, instrument panel housing, door cards, headliner, floor covering, and sun visors.
Seating: Driver seat and passenger seat(s), often with mechanical or air suspension for the driver's position.
Electrical harness: The cabin-side wiring loom that connects lights, instruments, switches, and control modules.
Glass: Windshield, side windows, and rear window (if applicable).
HVAC unit: Heater, blower, and air conditioning evaporator assembly.
Steering column and pedal box: In many assemblies, these are pre-installed to simplify the swap.
The exact scope varies by supplier. Some offer a bare cabin shell; others supply a fully trimmed assembly ready to bolt onto the chassis. Always confirm the parts list before ordering — a "cabin assembly" from one supplier may be a stripped shell, while another's includes seats, trim, and glass at a comparable price.
When Does a Cabin Replacement Make Sense?
Replacing an entire cabin is a major job, but in certain situations it is the most cost-effective option compared to piecemeal repair:
Rollover or Major Collision Damage
When the cabin structure is bent — roof crushed, A-pillars deformed, door openings no longer square — individual panel replacement is rarely economical. The labor hours required to straighten a distorted structure often exceed the cost and time of a complete cabin swap. More importantly, a repaired structure may not restore the original crash protection, which is a safety liability for a truck that will carry a driver every day.
Severe Corrosion
In coastal, tropical, or high-humidity operating environments, cabin rust can progress beyond surface treatment. When the floor pan, sills, or windshield surround are structurally compromised by rust, welding in patch panels is a temporary fix at best. A new cabin assembly eliminates the corrosion entirely and provides a clean base for anti-rust treatment before installation.
Fleet Rebuild Programs
Some fleet operators running HOHAN dump trucks on long-term mining or infrastructure contracts choose to rebuild vehicles mid-life rather than replace them. A new cabin assembly — combined with an engine overhaul and chassis refurbishment — can extend a truck's service life by several years at a fraction of the cost of a new vehicle. For operations in remote locations where importing new trucks involves long lead times, a rebuild program using stocked cabin assemblies keeps the fleet productive while new units are on order.
Driver Comfort and Retention
An aging cabin with worn seats, cracked dashboard plastics, failing air conditioning, and tired sound insulation creates a poor working environment. In markets where qualified heavy-truck drivers are in short supply, the condition of the cabin directly affects driver retention. Installing a new, fully trimmed cabin assembly improves the driver's daily experience and signals that the employer invests in equipment quality.
HOHAN Cabin — Why OEM Specification Matters
The SINOTRUK HOHAN series is a distinct product line within the Sinotruk family, positioned between the entry-level chassis and the premium HOWO range. HOHAN dump trucks share some powertrain and chassis components with other Sinotruk models, but the cabin is model-specific. This means a HOWO cabin will not simply bolt onto a HOHAN chassis without modification — the mounting points, dimensions, and front-end styling are different.
When ordering a replacement cabin assembly, using the correct HOHAN-spec unit is essential for:
Chassis compatibility: Cabin mounts, bolt patterns, and cab suspension points must align with the HOHAN chassis.
Front-end fitment: The grille, headlight housings, bumper, and fenders are designed for the HOHAN front profile — a mismatched cabin will create panel gap and mounting problems.
Electrical integration: The cabin wiring harness connects to the chassis-side harness at specific bulkhead connectors. A non-matching cabin may require rewiring or adapter looms, adding labor cost and creating future electrical fault risks.
Interior parts availability: An OEM HOHAN cabin means future interior replacements — door handles, switches, trim clips — will match standard HOHAN parts stocked by Sinotruk distributors.
Key Checks Before Ordering
A cabin assembly is a high-value purchase with significant shipping cost due to its volume. Getting the order right the first time avoids expensive corrections. Before confirming, verify the following with your supplier:
1. Confirm the Exact HOHAN Model Variant
The HOHAN range includes multiple model codes and production years. Provide your vehicle's VIN (Vehicle Identification Number) or chassis number to the supplier. This allows them to cross-reference the correct cabin part number against Sinotruk's parts catalog. A cabin for a HOHAN 6×4 dump truck may differ from one built for an 8×4 variant, even if they look similar.
2. Confirm What Is Included
Ask for a written parts list covering exactly what the assembly contains:
Doors included, or bare shell only?
Glass pre-installed, or supplied separately for installation after painting?
Interior trim — dashboard, door panels, headliner?
Seats — driver only, or driver plus passenger(s)?
Wiring harness — complete cabin-side loom or partial?
HVAC unit — heater box, evaporator, blower motor?
Steering column, pedal assembly, and shifter?
Differences in what suppliers include under "cabin assembly" can represent thousands of dollars in additional parts and labor if not clarified upfront.
3. Confirm Packaging and Shipping Method
A complete cabin is a large, relatively fragile item. Ask how the cabin will be packed — is it crated, wrapped, or shipped exposed? Will it be protected against salt spray during sea freight? What is the shipping volume in cubic meters and the estimated freight cost? Cabins shipped without adequate protection can arrive with transit damage that partially defeats the purpose of the replacement.
4. Confirm Paint Status
Cabin assemblies are typically supplied in primer only, requiring the buyer to paint the unit to match the chassis after installation. If your operation has in-house painting capability, this is manageable. If not, ask whether the supplier can arrange pre-painting to your fleet color before shipping, and factor the cost into your comparison.
5. Confirm Mounting Hardware
The cabin mounts to the chassis via rubber or hydraulic cab suspension units. Ask whether mounting bushings, bolts, and cab suspension components are included with the assembly or must be ordered separately. Missing mounting hardware on installation day stalls the job.
Installation Considerations
Swapping a complete cabin is a workshop-level job, not a field repair. The process typically requires:
A lifting device — overhead crane or heavy forklift — capable of safely maneuvering the cabin into position.
Disconnection and reconnection of the chassis-to-cabin electrical harness, HVAC refrigerant lines, steering shaft, clutch hydraulics, and throttle linkage.
Alignment of door gaps and panel fit after mounting.
Recharging of the air conditioning system.
Calibration or reconnection of any electronic control modules that interface with the cabin instruments.
A workshop familiar with Sinotruk trucks should be able to complete the job within three to five working days, depending on whether the new cabin requires painting on-site.
Sourcing a HOHAN Cabin Assembly — What to Look for in a Supplier
The ideal supplier for a cabin assembly is one that:
Has direct access to the Sinotruk OEM parts catalog and can verify part numbers against your chassis VIN.
Can supply a complete rather than partial assembly, reducing the number of separate orders needed.
Provides clear photos or documentation of the exact cabin condition if the unit is remanufactured rather than new.
Offers guidance on shipping options — Ro-Ro, flat rack, or consolidated container — with transparent freight estimates.
Can supply supporting parts — cab suspension units, mounting hardware, front-end body panels — in the same shipment to minimize freight costs and administrative overhead.
Conclusion
A SINOTRUK HOHAN dump truck cabin assembly is a significant investment, but for trucks with structural damage, severe corrosion, or those undergoing a mid-life rebuild, it is often the most logical path forward. The key to a successful purchase is defining exactly what you need — correct model variant, complete parts list, appropriate packaging — and working with a supplier who can verify compatibility against your vehicle's VIN rather than guessing based on a model name alone.
For pricing, availability, and part-number verification on SINOTRUK HOHAN cabin assemblies and related components, contact the Shandong Chengda Auto Sales team.
